Endpoint - Line, Arc
Midpoint - Line, Arc

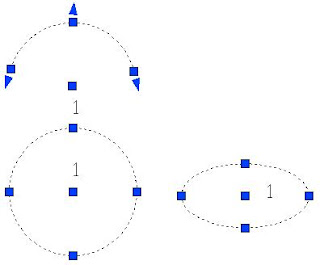

Center - Circle, Arc, Ellipse
Hover on the edge of circle then move to the center mark
Node - Point object
Quadrant - Circle, Arc, Ellipse
Intersection - Any object overlap or touch
Extension - Line, Arc
Extension from > 1 object
Insertion - Text, Block
Perpendicular - Line, Circle, Arc
Extend through the center point
Tangent - Circle, Arc, Ellipse
OFF Center & Quadrant will be easy to get the Tangent osnap
Nearest - All
It may override other Osnap
Apparent Intersection - All in 3D space
Parallel - Line
Hover on the line to mark it then move away until the // reappear
